Madison Heights, Michigan
Design and build under one roof.
Engineering, 5-axis machining, fabrication and inspection in one building — so one supplier owns your part from print to shipment.
±0.0002″
Held on critical features
24 hrs
Typical quote turnaround
75+ yrs
Combined industry experience
51 × 22 × 20″
Maximum milling envelope
Parts and tooling delivered to
- Rivian
- Ford
- Pratt & Whitney
- CNH Industrial
- Magna
- Toyota
What we do
Six disciplines, one building, one supplier on the hook.
Most shops send half the job somewhere else. We hold the design, the metal, the fabrication and the inspection under one roof — which is why the schedule holds and why there is nobody to point at when it doesn't.
Not sure which one you need? Describe the problem and we will tell you which process fits — or that it does not, and who does it better.
Talk to an estimator
The flagship
5-Axis Machining
Complex, multi-face geometry comes off in a single setup. Fewer fixtures, no stack-up error between operations, and real cost out of the quote — particularly on parts previously priced with two or three ops.
- One setup
- ±0.0002 in
- CMM verified
41.3 × 22.0 × 18.1 in · 15,000 RPM · Okuma Genos M560V-5AX

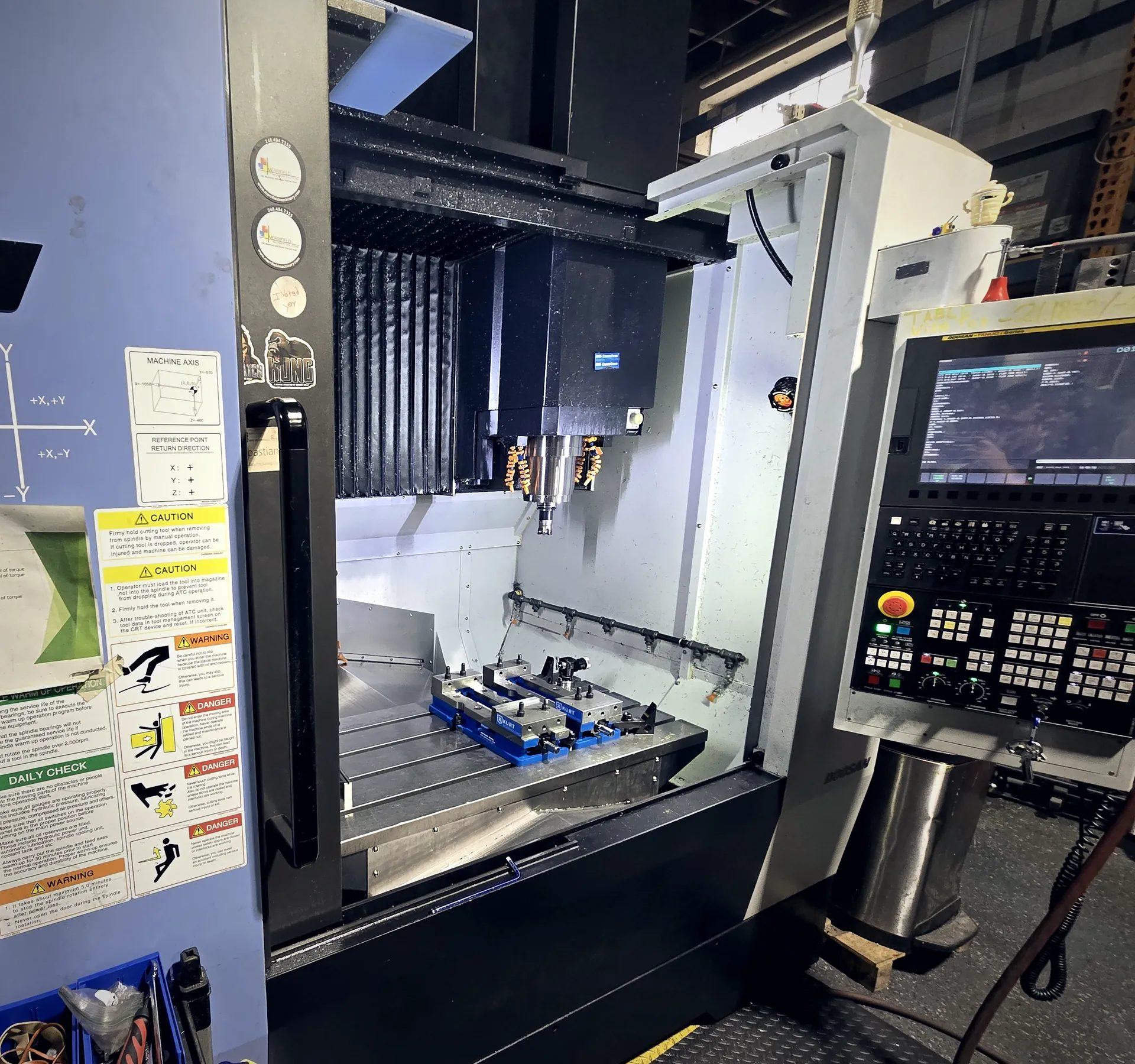

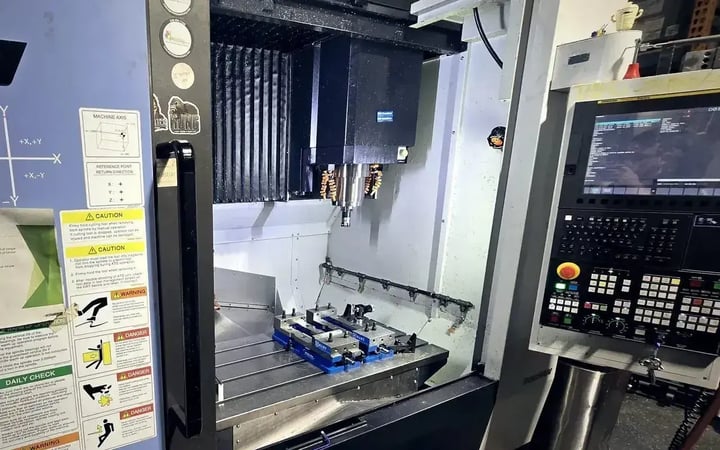

CNC Milling
Six vertical machining centres including a bridge-type BVM 5700, sized for everything from a single prototype block to recurring production releases.
Up to 51 × 22 × 20 in

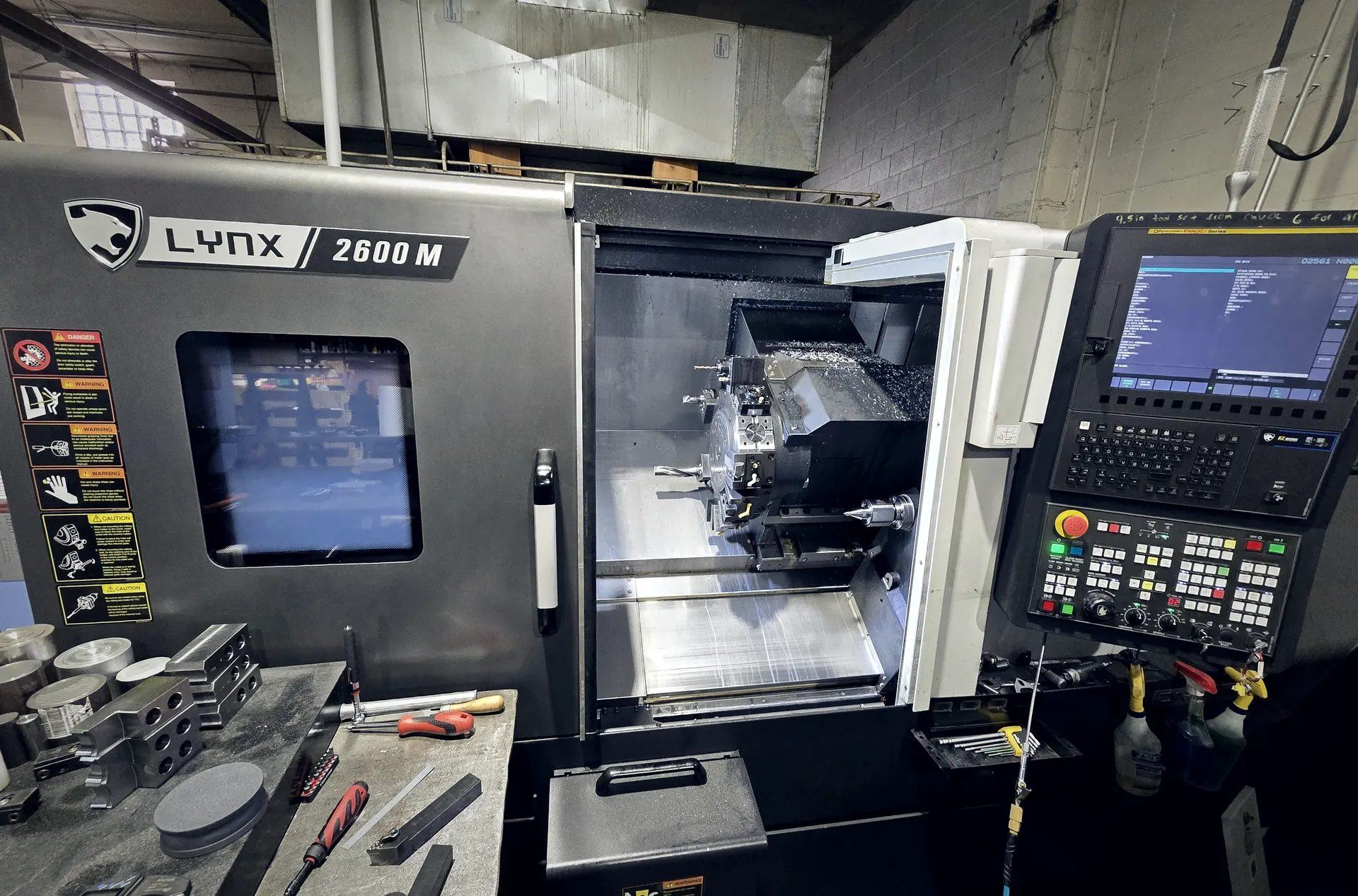

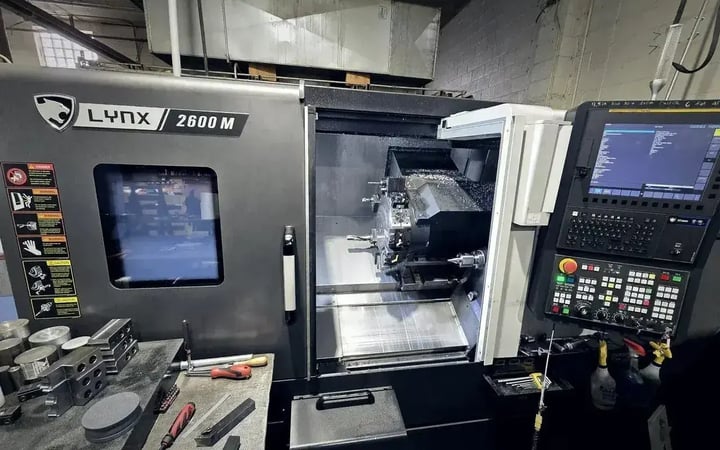

CNC Turning
Doosan Lynx 2600M and 2100Y with live tooling and Y-axis, so turned parts with milled features finish complete on one machine.
Ø14.96 in × 24 in

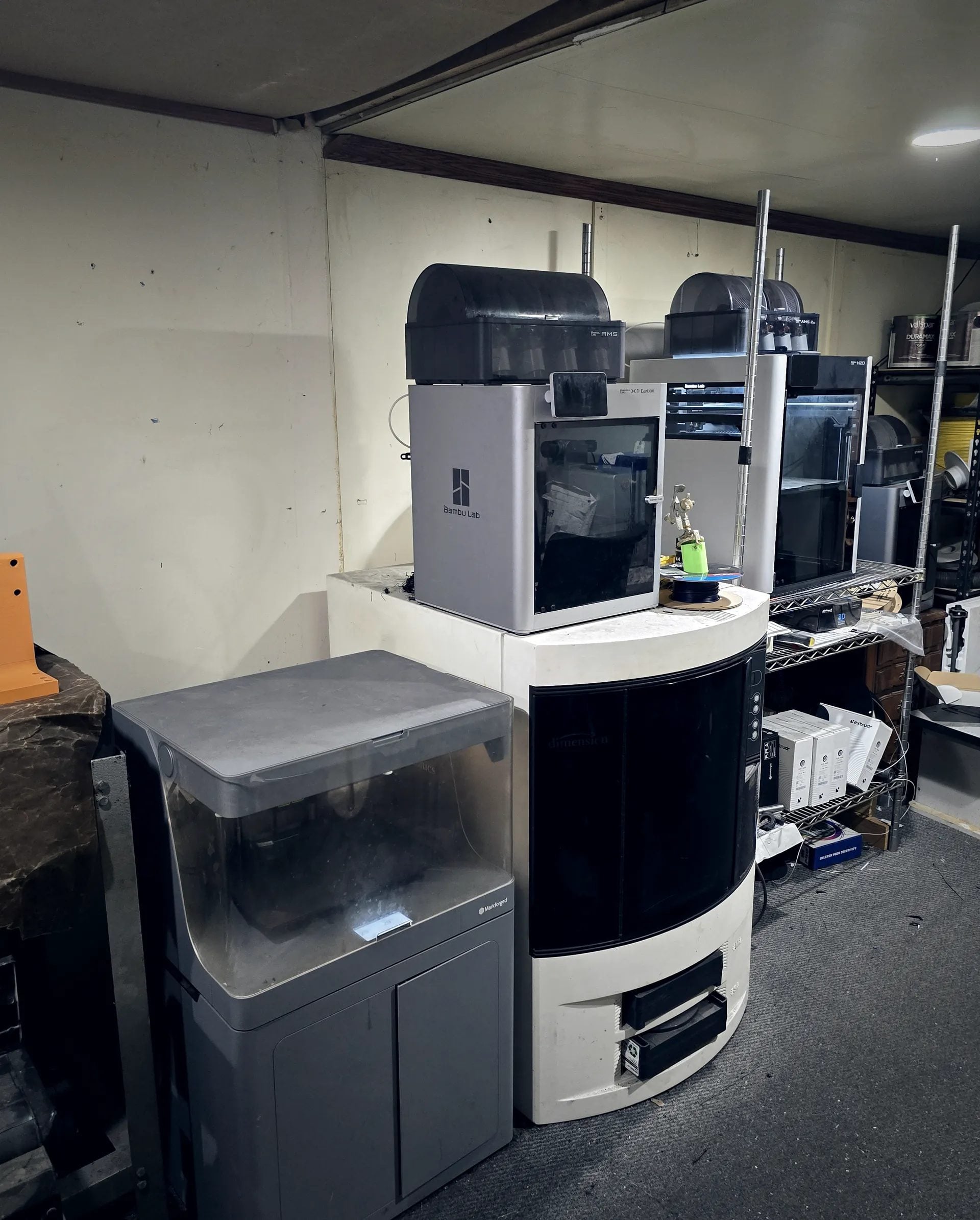

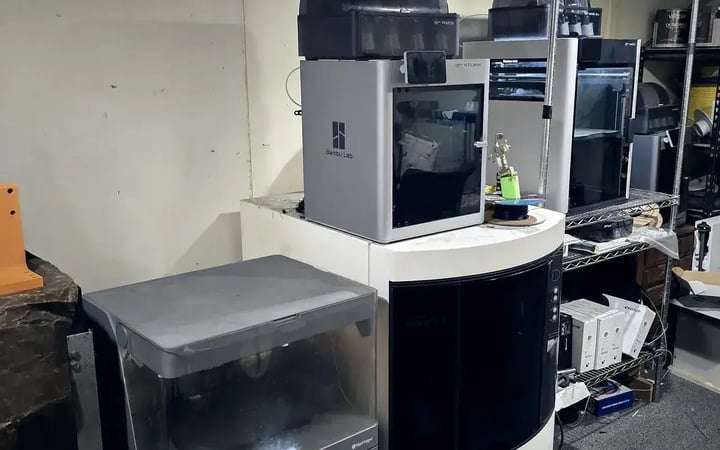

Additive & Prototyping
Stratasys F370, Markforged X7 and a Bambu Lab cell. Ten materials including carbon-fibre-reinforced, for design validation and pre-production tooling.
36 × 24 × 36 in build volume

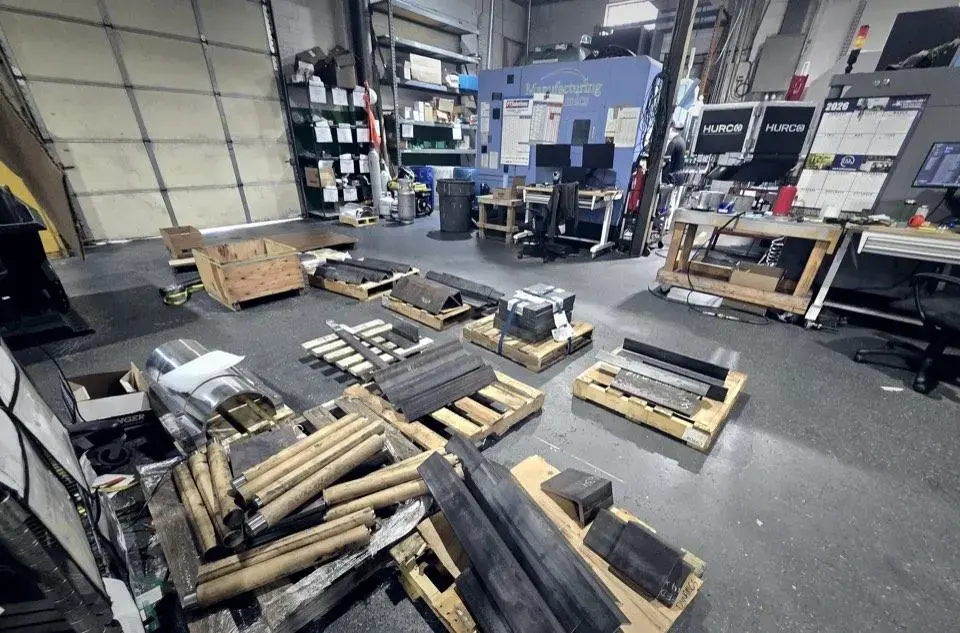

Tooling Design & Build
Weld, assembly and inspection fixtures designed, built, tried out and delivered. Turnkey, including the automation that runs them.
Design → build → tryout → install
Inspection
Mitutoyo AE112 CMM, Keyence XM-5000 probe CMM and Artec Leo 3D scanning. Inspection plans are written at quoting, not after the fact.
±0.0002 in on critical features
Work envelopes
Will your part fit?
Every machine shop publishes a spec list. Here they are drawn to one scale instead, so you can answer the question without doing the arithmetic.
Bigger than the biggest bar? Send it anyway — large weldments get broken into machined details and fabricated here, which is often cheaper than finding a shop with one enormous machine.
-
CNC Routing
up to 84 × 170 in
MultiCam 1000 Series
-
CNC Milling
51 × 22 × 20 in
Bridge-type and vertical machining centres
-
5-Axis Machining
41.3 × 22.1 × 18.1 in
Okuma Genos M560V-5AX
-
Additive
36 × 24 × 36 in
Build volume across the printer fleet
-
CNC Turning
Ø14.96 in × 24 in
Doosan Lynx 2600M
48 in — the long side of a standard pallet, for scale. Bars show the longest axis of each envelope.
Recent work
Parts and tooling that left this building
Weld and assembly fixtures, checking gauges, end-of-arm tooling, machined details. Real jobs, not stock photography.
Under NDA on most of what we build, so this is what we can show. If you want to see something closer to your part, ask — we can usually describe a comparable job.
-

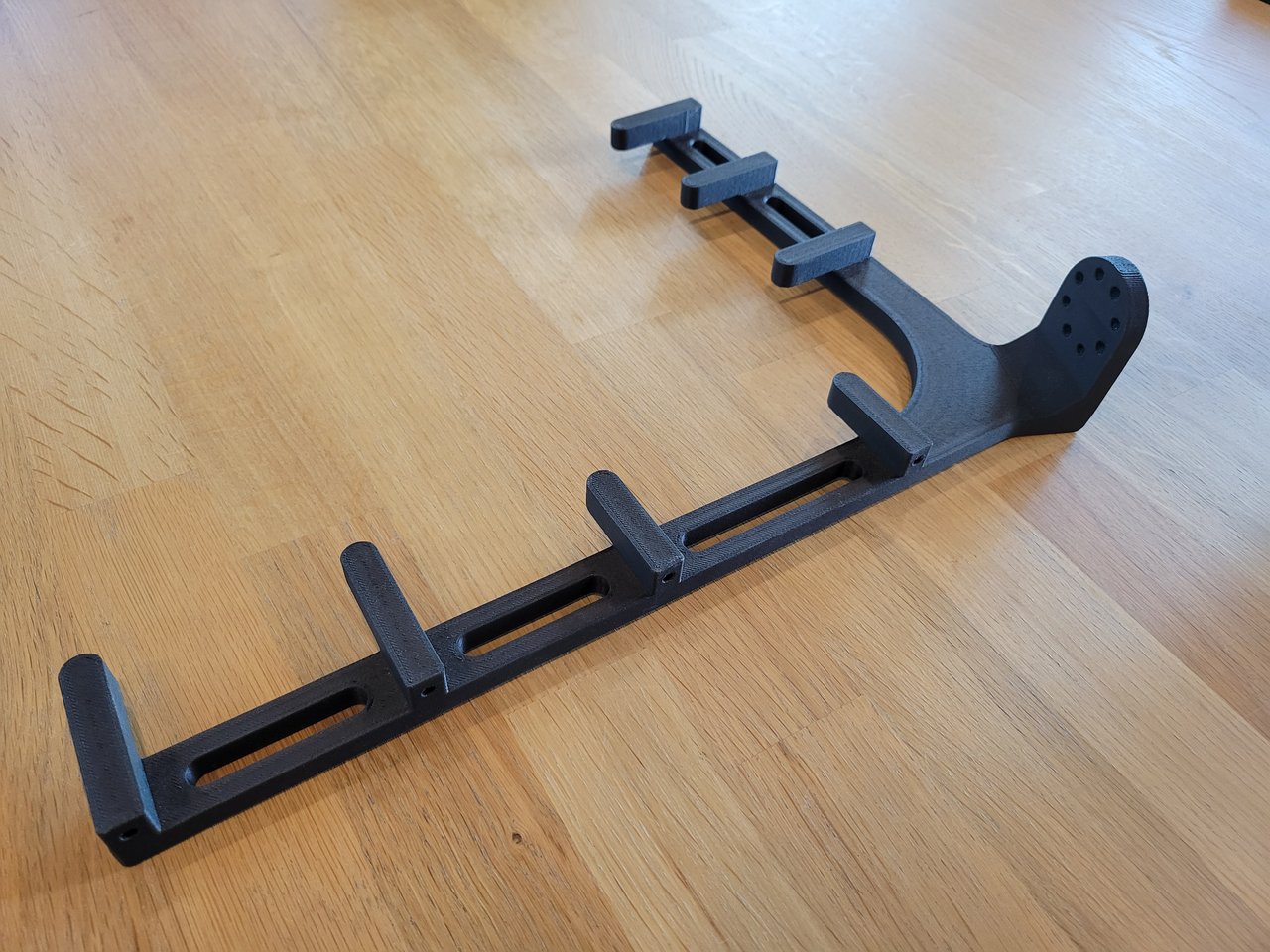

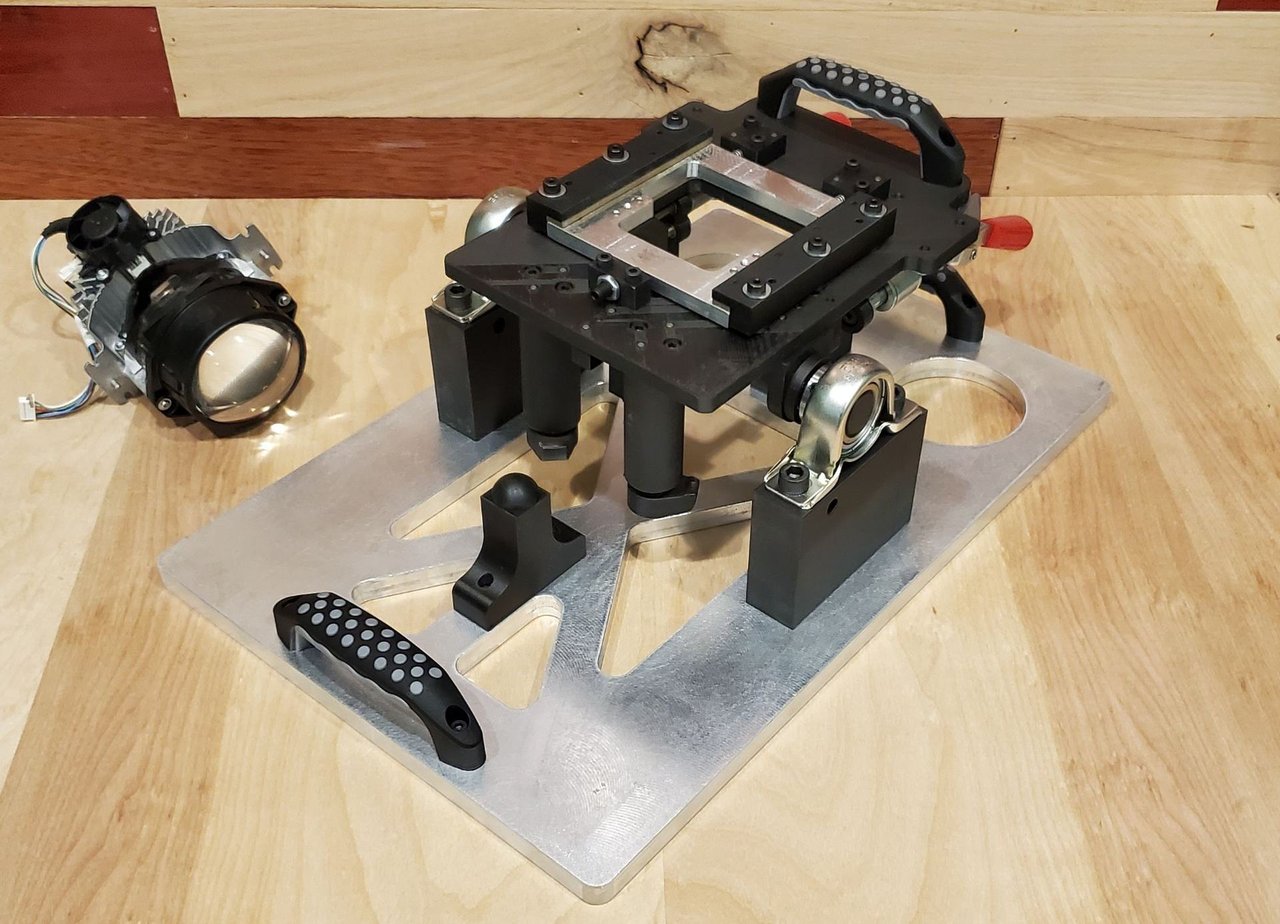

End of Arm Tooling -

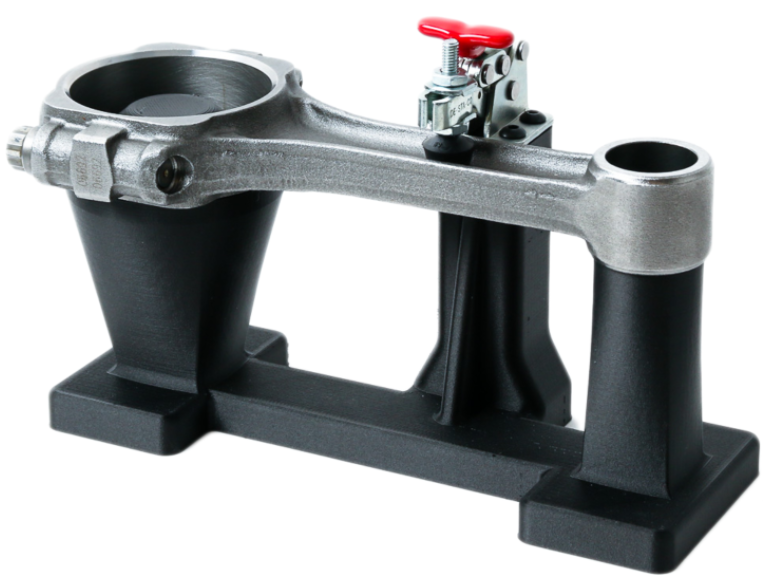

Inspection Fixture -

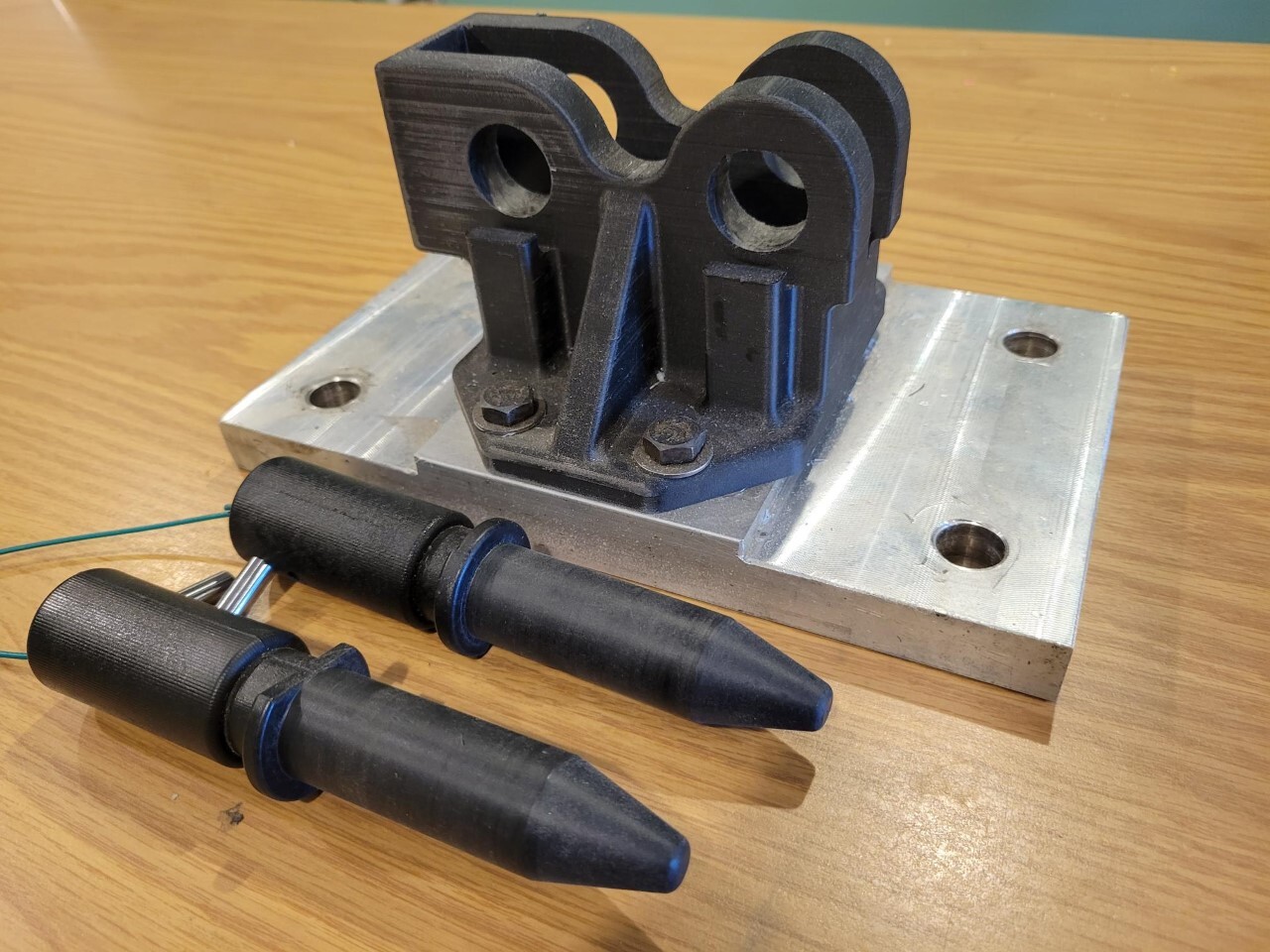

Checking Fixture -

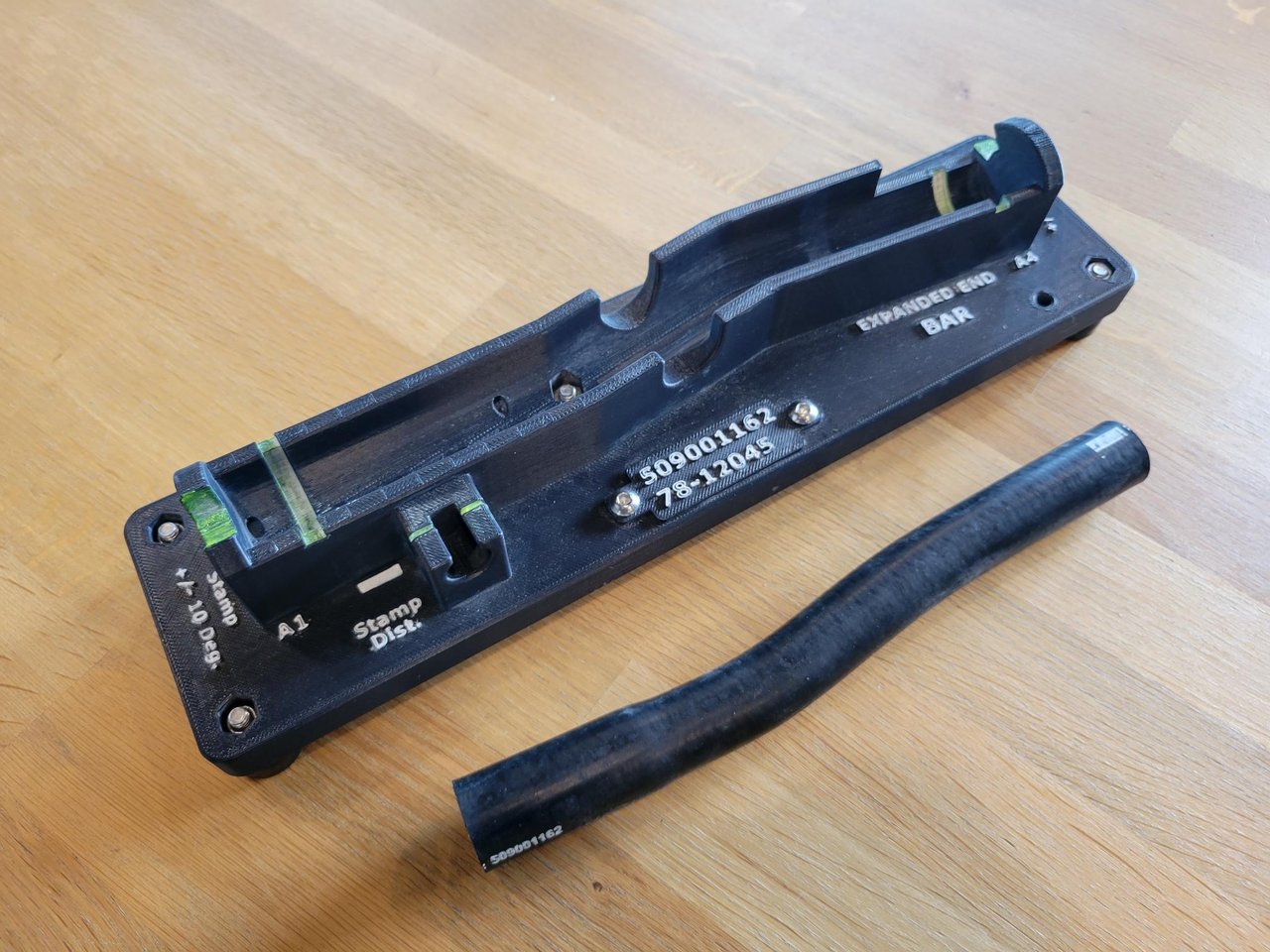

Go - No Go Gauge -

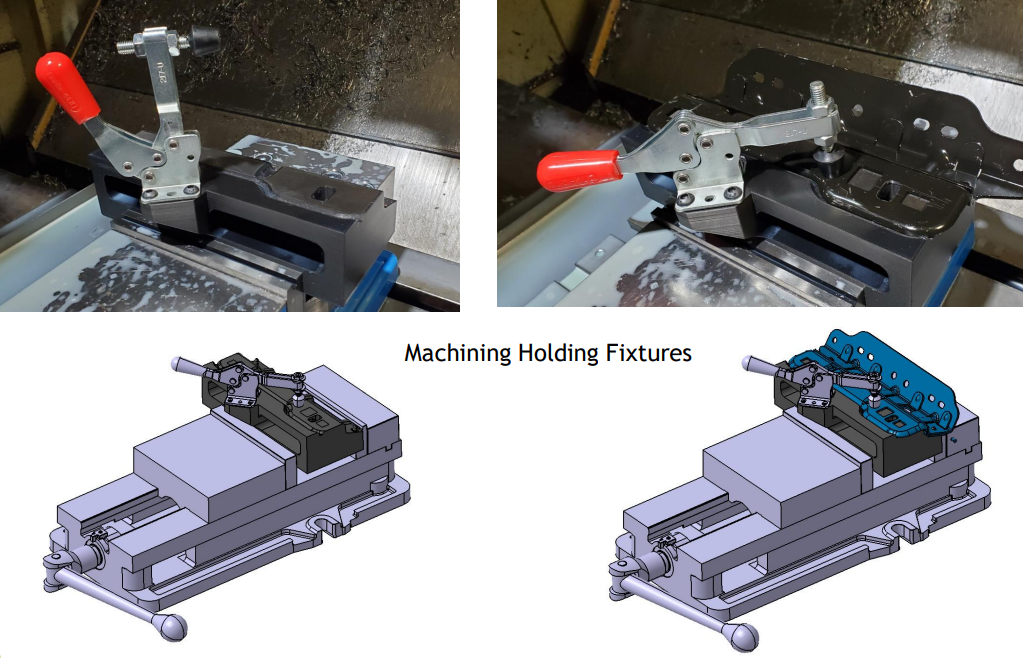

Machining Fixture -

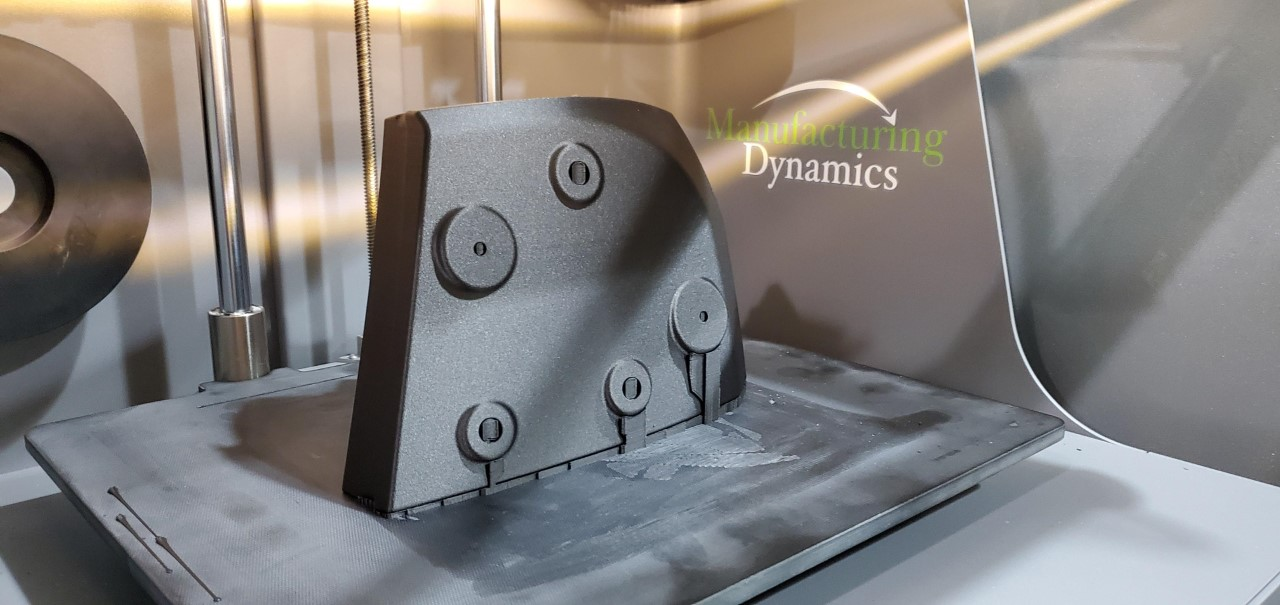

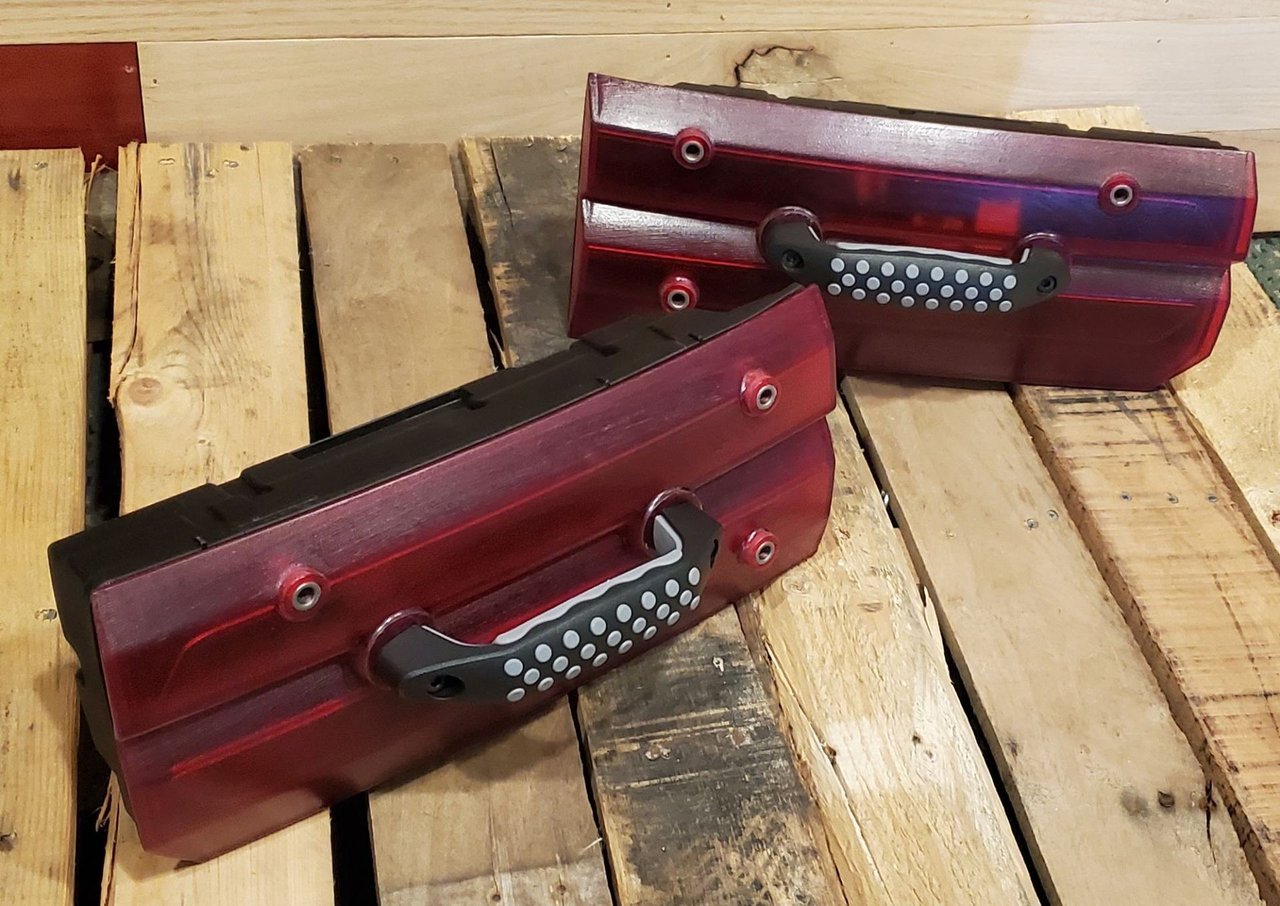

Tail Lamp
Send us a print. We'll send back a number.
Most quotes go out within 24 hours. Drawings, a rough sketch, or just a description of the problem — all of it works.
