Tolerance Selection: How Tight Is Tight Enough (and What It Costs You)
Every dimension on a drawing carries a tolerance, and every tolerance carries a cost. The engineering skill is not holding the tightest number a shop can achieve — it is knowing which band each feature belongs in, and being able to defend that choice. This guide walks through the practical bands, stack-up, GD&T fundamentals, and what your tolerance choices do to inspection.
The three practical tolerance bands
| Band | Typical range | What it means in the shop |
|---|---|---|
| Standard | ±0.005 in and looser | Normal feeds and speeds, standard tooling, minimal special handling. Most brackets, housings, and structural features live here. |
| Precision | ±0.001 to ±0.005 in | Finishing passes, tool-wear compensation, closer process control. Bearing fits, locating features, mating interfaces. |
| Ultra-precision | Down to ±0.0002 in | Thermal management, dedicated finishing operations, and CMM verification of every controlled feature. Reserved for features where micron-level fit governs function. |
The cost between bands is not linear. Moving a feature from standard to precision might add modest machining time; moving it to ultra-precision changes how the entire job is planned — stock allowances, operation sequencing, in-process gauging, and environmental control all shift.
Tolerance stack-up: where over-tolerancing hides
Many drawings carry tight tolerances not because a single feature needs them, but because the designer is nervous about accumulation. Before tightening everything, do the arithmetic:
- Worst-case stack: sum the tolerance contributions along the chain. Conservative, but often forces unnecessarily tight individual tolerances.
- Statistical (RSS) stack: root-sum-square of the contributors. Realistic for chains of several dimensions, and usually shows you can loosen individual features considerably.
- Redesign the chain: the cheapest fix is often dimensioning from a common datum so tolerances do not accumulate at all.
A five-dimension chain toleranced at ±0.002 in each does not need each feature at ±0.002 if the assembly requirement is ±0.010 total — RSS analysis may justify ±0.004 on most of them, which can move features down a full cost band.
When ±0.0002 in is actually justified
Tenths-level tolerances earn their cost when the function demands them:
- Precision bearing bores and spindle interfaces where preload and runout depend on the fit
- Hydraulic and pneumatic sealing diameters where leakage scales with clearance

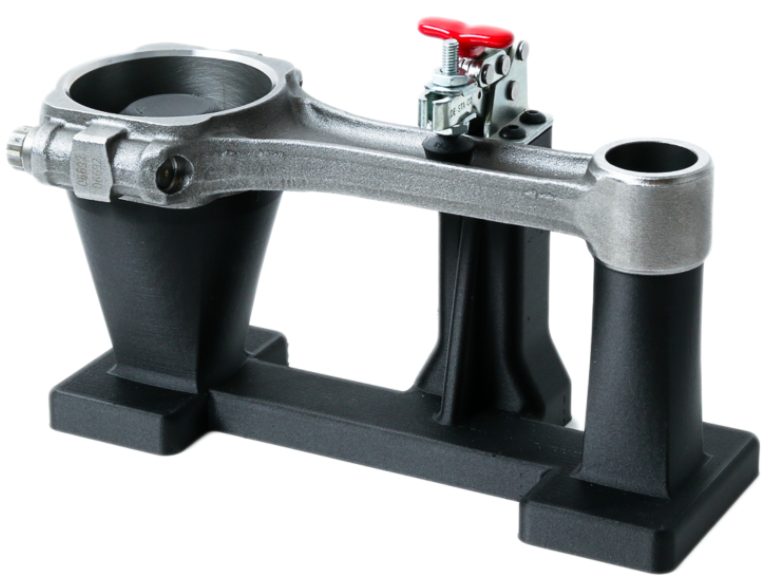

- Gauge and inspection tooling that must itself be an order of magnitude better than what it measures
- Optical and metrology mounts where micron shifts change alignment
If a feature is bolted, welded, bonded, or clearance-fit, it almost never belongs in this band. Dynamics Group holds tolerances to ±0.0002 in where the application requires it — and part of our quoting conversation is confirming that it does.
GD&T basics that pay for themselves
Geometric dimensioning and tolerancing is not decoration — used well, it usually loosens effective tolerances while protecting function:
- Datums: define the functional mounting surfaces as datums, in the order the part actually locates in the assembly. The shop will fixture and inspect from them.
- Position over coordinate tolerances: true position gives a round tolerance zone that is ~57% larger in area than the equivalent square coordinate zone, and it permits bonus tolerance at MMC.
- Flatness and perpendicularity: apply them to the surfaces that seat or seal — not globally.
- Profile of a surface: a clean way to control complex 5-axis geometry with one callout instead of dozens of dimensions.
The inspection consequence of every callout
Each toleranced feature must be verified, and the tolerance band determines how. Standard-band features can be checked with calipers and micrometers; precision and ultra-precision features need CMM programs, and true-position callouts effectively require them. Our inspection department runs Mitutoyo AE112 and Keyence XM-5000 CMM systems, so tight and geometric tolerances come with documented, traceable measurement — but every controlled feature adds program and cycle time. Two habits keep that cost proportionate: mark critical dimensions explicitly, and state the required inspection level (first article, critical features, or full layout) on the RFQ.
The bottom line
Tolerance selection is a budgeting exercise: spend tight tolerances where function demands them, and deliberately spend loose ones everywhere else. A drawing that reflects that discipline is cheaper to quote, faster to machine, and easier to inspect. You can read more about our machining capabilities on our CNC machining page, and about precision measurement work on our inspection gauges page.
Have a drawing with tolerances you want a second opinion on? Send it through our Request a Quote form — Dynamics Group responds within 24 hours.
