CMM dimensional inspection
Critical locations, bores, surfaces and datum relationships measured against the agreed print.
Inspection & metrology

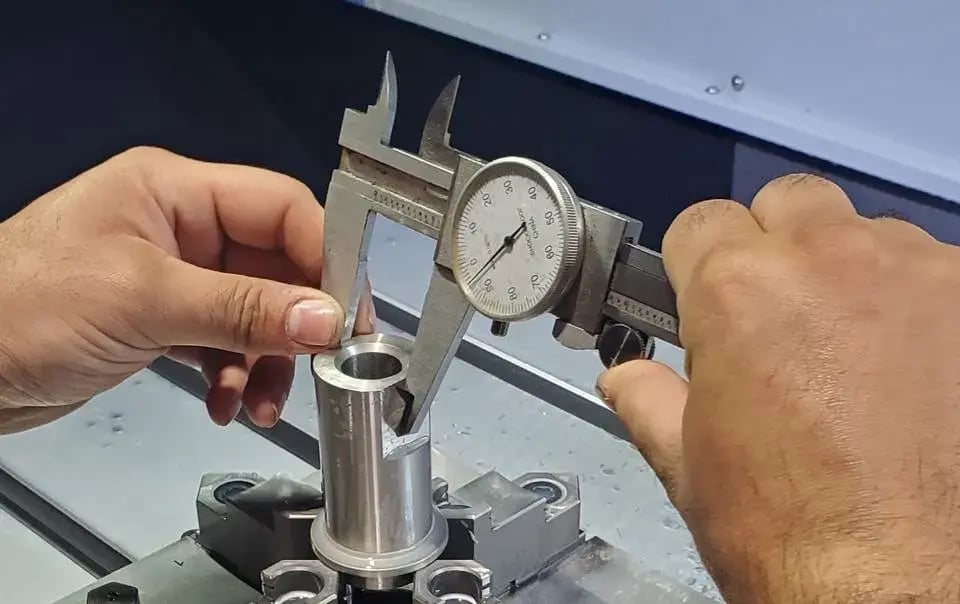

Inspection planned with the process, not added at the end.
Critical features are identified at quoting, checked in process and verified before release using a manual Mitutoyo CMM, a Keyence handheld probe CMM and Artec Leo 3D scanning.
±0.0002 in
Critical-feature capability
Mitutoyo AE112
Manual CMM
Keyence XM-5000
Handheld probe CMM
Artec Leo
Full-surface 3D scanning
Where we fit
Three measurement methods for three different questions
No single inspection tool answers every problem. The method is selected around feature accessibility, required uncertainty, part size and the decision the data needs to support.
Portable probe inspection
Fast checks on fixtures, assemblies and features that are awkward to stage on a conventional CMM.
3D scanning
Reverse engineering, surface comparison and digital capture where a full point cloud is more useful than a short feature list.
In-process verification
Checks placed where they prevent scrap rather than only documenting it after the run.
Proof before promise
Inspection capability
- Manual CMM
- Mitutoyo AE112 coordinate measuring machine
- Portable metrology
- Keyence XM-5000 handheld probe CMM
- Scanning
- Artec Leo 3D scanner for reverse engineering and surface capture
- Supporting tools
- Two granite tables, calipers and height stands
How a quote starts
Send enough context to get a useful answer
-
01
Show the requirement
A drawing, model, marked-up photo, layout or statement of work is enough to begin.
-
02
Name the decision
Quantity, timing, critical features and acceptance requirements keep the quote focused.
-
03
Review together
We identify risk, missing data and the best process before committing your schedule.
Buyer questions
Straight answers before you send a print
Is the Mitutoyo CMM automated?
No. The AE112 is a manual CMM. Dynamics Group states that plainly so buyers can match the inspection method to their program requirements.
Can you provide a dimensional report?
Yes, when the report scope and critical features are defined in the quote or purchase requirements.
Do you offer reverse engineering?
Yes. Artec Leo scanning and engineering support can capture existing geometry and turn it into usable design data.
What is the tightest machining capability you publish?
Dynamics Group publishes capability to ±0.0002 in on critical features, subject to geometry, material, size and inspection method.
Have a print, model or tooling problem?
Send what you have. We will tell you where we fit, what is missing and the fastest practical next step.
