Large-format CNC routing

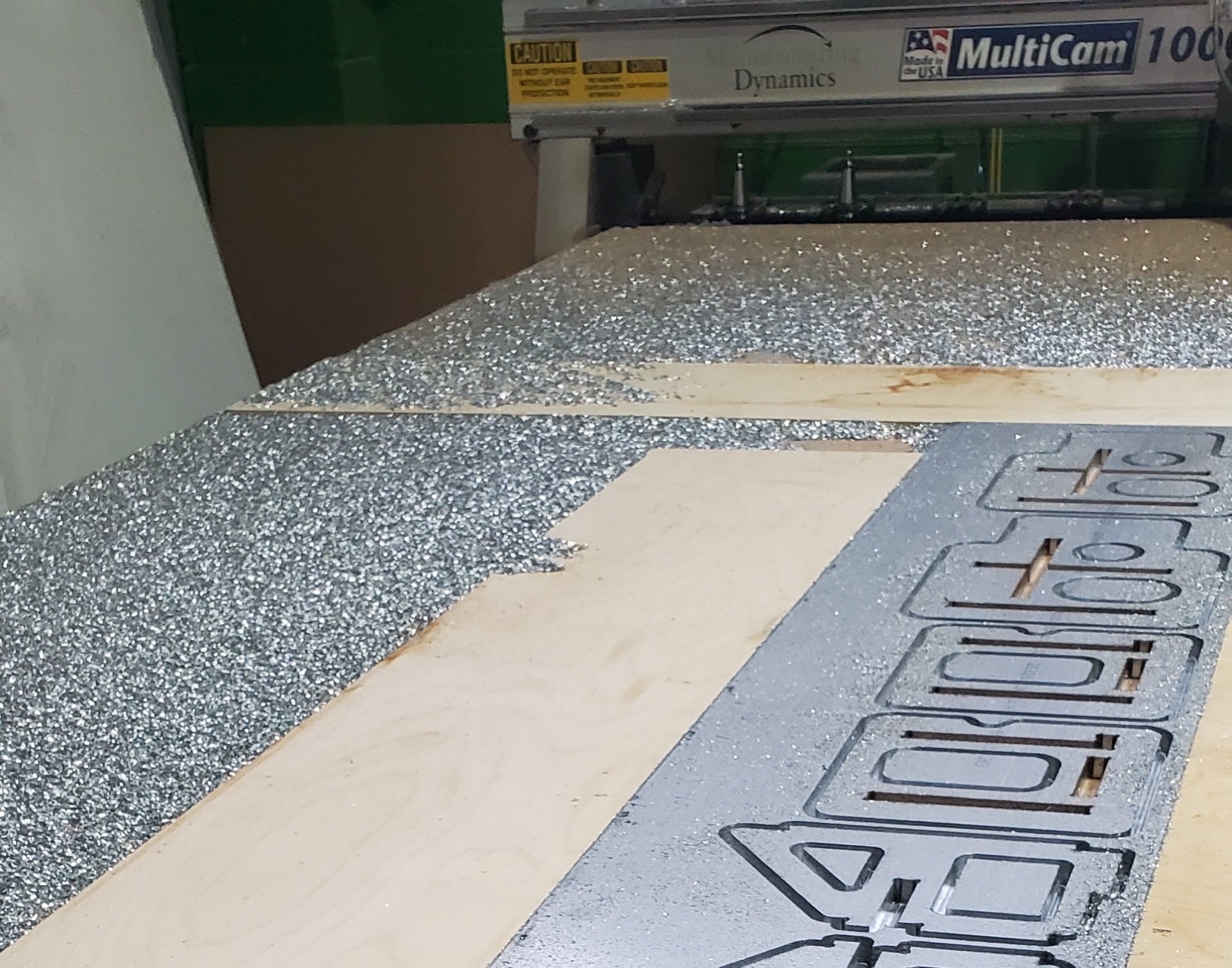

When the part is bigger than the machine shop's table.

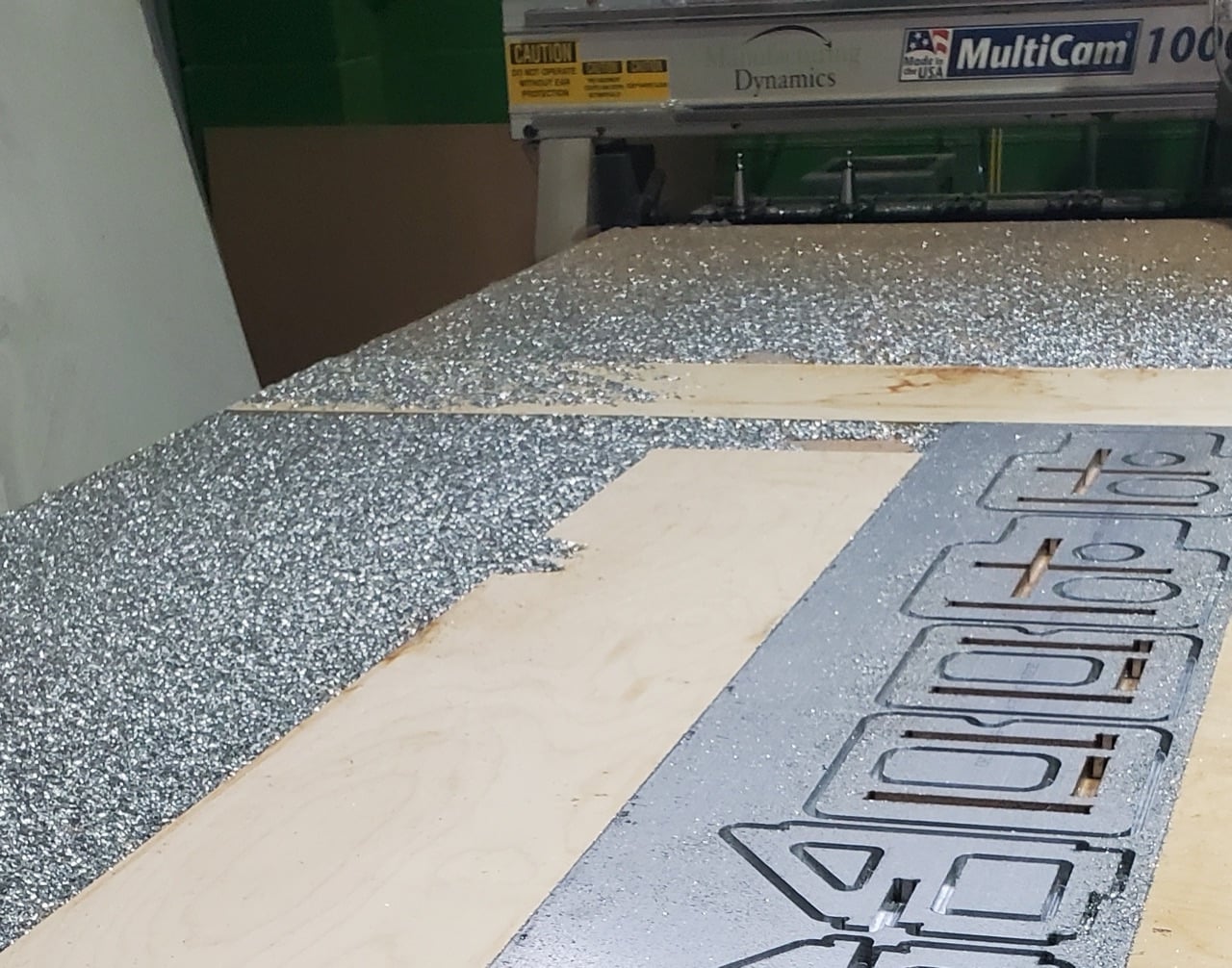

The MultiCam 1000 Series router carries a working area to 84 x 170 inches — full-sheet and oversized work that a VMC cannot hold, cut in one piece instead of sectioned and joined.
84 × 170 in
Maximum working area
Full sheet
One-piece parts, no splicing
In-house
Design, fixturing and inspection
Detroit
Madison Heights, Michigan
Where we fit
Where large-format routing beats milling and sawing
Routing earns its place when the part is large, relatively flat and would otherwise be sectioned to fit a machining center — or cut roughly and finished by hand. One program, one sheet, one finished part.
Trim and drill fixtures
Large fixture bases, nests and trim tools that exceed VMC table sizes.
Panels and enclosures
Machine guarding, kiosk and enclosure panels, and formed-part trim in plastics and composites.
Non-metallic machining
Plastics, composites, wood and foam tooling board cut clean at full-sheet scale.
Proof before promise
Published routing capability
- MultiCam 1000 Series
- Working area from 50 x 100 to 84 x 170 inches
- Companion machining
- Six VMCs to 51 x 22 x 20 in for machined details and hardware interfaces
- Materials
- Plastics, composites, aluminum sheet, wood and tooling board
- Verification
- Critical dimensions checked on in-house metrology before delivery
How a quote starts
Send enough context to get a useful answer
-
01
Show the requirement
A drawing, model, marked-up photo, layout or statement of work is enough to begin.
-
02
Name the decision
Quantity, timing, critical features and acceptance requirements keep the quote focused.
-
03
Review together
We identify risk, missing data and the best process before committing your schedule.
Buyer questions
Straight answers before you send a print
What is the largest part you can route?
The published working area is 84 x 170 inches. Oversized parts are reviewed individually for fixturing, sag and edge support before quoting.
Can you rout aluminum?
Yes — aluminum sheet and plate within the router's capability; heavier metal removal moves to the VMC fleet in the same building.
Do you supply the fixturing?
Yes. Vacuum, mechanical and dedicated nest fixturing is designed and built in-house around the part and material.
Can routed parts include machined details?
Yes. Precision features can be finished on the machining centers so the assembly arrives complete from one supplier.
Have a print, model or tooling problem?
Send what you have. We will tell you where we fit, what is missing and the fastest practical next step.
