Attribute gages
Go/no-go decisions for recurring features and assembly conditions.

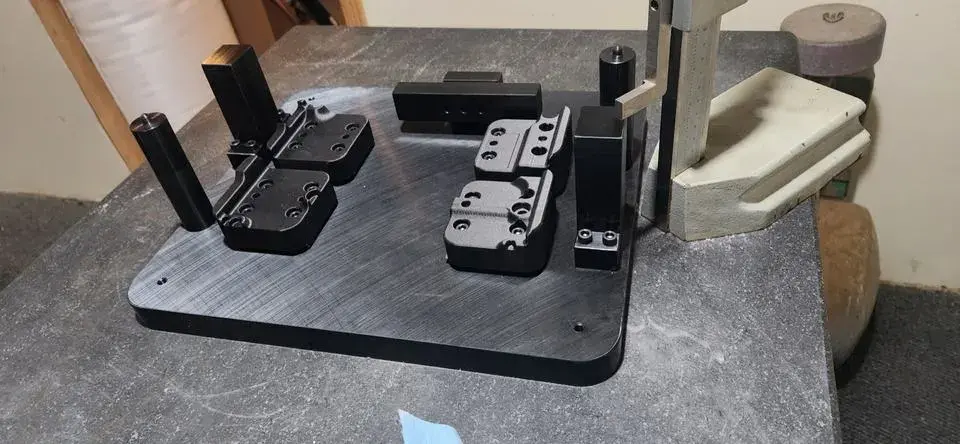

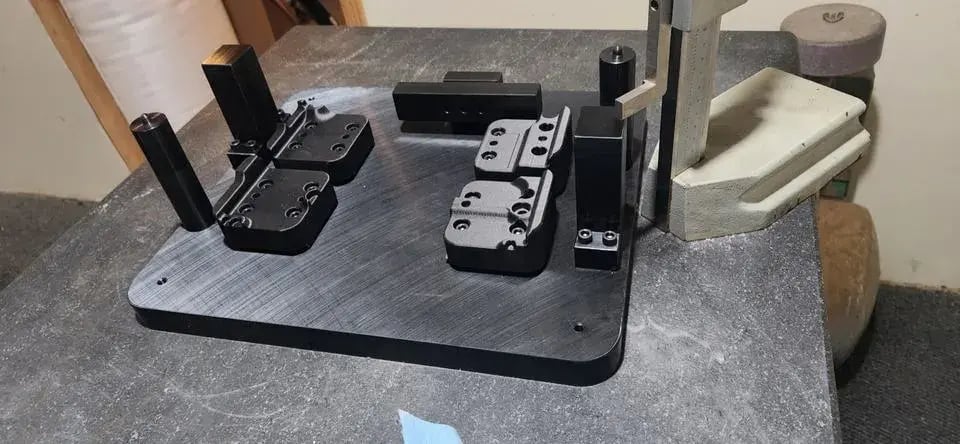

Checking fixtures & gages
Turn a drawing requirement into a fast production decision.
Dynamics Group designs and builds checking fixtures and inspection gages around the feature, datum structure, operator and decision the tool must support.
Design + build
One source
CMM
Fixture details verified
3D scan
Existing geometry captured
Line-side
Operator usability considered
Where we fit
A gage should remove ambiguity, not add a second inspection process
The tool is designed around a clear decision: accept, reject, adjust or diagnose. That keeps the interface simple and puts metrology only where it adds value.
Variable checking fixtures
Measurement access for features where numeric feedback drives adjustment.
Master and correlation aids
Defined references for repeatability, setup and maintenance checks.
Reverse-engineered nests
Digital capture and design support when original models are incomplete.
Proof before promise
How the gage is delivered
- Inputs
- Part model, drawing, datum scheme, decision criteria and production context
- Build
- Machined details, fabricated structure, purchased components and assembly
- Verification
- Agreed critical features checked on appropriate in-house metrology
- Support
- Practical review of operator access, maintenance and replaceable wear details
How a quote starts
Send enough context to get a useful answer
-
01
Show the requirement
A drawing, model, marked-up photo, layout or statement of work is enough to begin.
-
02
Name the decision
Quantity, timing, critical features and acceptance requirements keep the quote focused.
-
03
Review together
We identify risk, missing data and the best process before committing your schedule.
Buyer questions
Straight answers before you send a print
Do you design both attribute and variable gages?
Yes. The design depends on the production decision, tolerance, feature access and required feedback.
Can you work from an existing physical part?
Yes. 3D scanning and conventional measurement can support reverse engineering when approved source data is incomplete.
Do you provide calibration services?
No calibration service is claimed on this page. Calibration and certification requirements should be identified so the correct accredited provider can be included when needed.
Can you include replaceable wear details?
Yes. Pins, bushings, locators and other wear items can be designed for maintenance and replacement.
Have a print, model or tooling problem?
Send what you have. We will tell you where we fit, what is missing and the fastest practical next step.
