Locating nests and part cradles
Contact geometry that seats the real part one way, machined or 3D printed to protect finished surfaces.
Assembly fixtures & build tooling

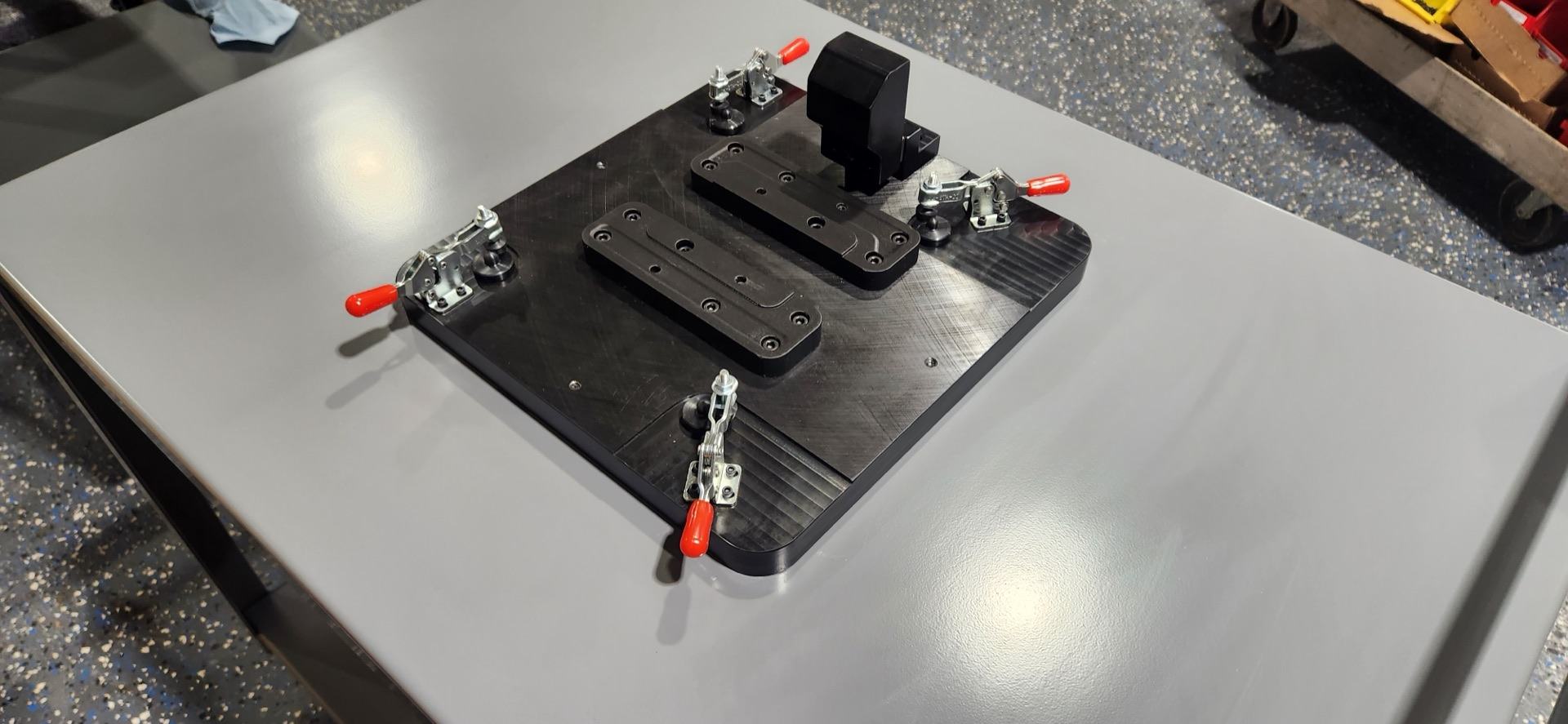

The fixture an operator uses 400 times a shift.
Assembly tooling lives or dies on the human using it. Dynamics Group designs and builds fixtures around the load sequence, the reach, the torque access and the error you want made impossible — then proves them before they reach your line.
Design + build
Concept through runoff
Poka-yoke
Wrong build made impossible
In-house
Machining, fabrication and assembly
Detroit
Madison Heights, Michigan
Where we fit
An assembly fixture is not a weld fixture or a machining fixture
The three get lumped together and they solve different problems. Machining workholding fights cutting forces and chips. Weld fixtures fight heat and distortion. An assembly fixture fights operator variation — sequence, reach, fatigue and the parts that will eventually be loaded backwards unless the tool prevents it.
Poka-yoke and part-present sensing
Features and sensing that make the wrong component, wrong orientation or missing part impossible to pass on.
Fastening and adhesive tooling
Access for torque tools, press operations and bead paths, including support for robotic fastener applications.
Operator-first ergonomics
Load height, reach, clamp effort and cycle sequence reviewed as design inputs, not discovered on the line.
Proof before promise
How the tool is proved before it ships
- Engineering
- Mechanical design, datum strategy and sequence review before steel is ordered
- Build
- Machined details, fabricated structure, purchased components and assembly in one facility
- Tryout
- Real parts loaded and the sequence run in our own shop, not simulated on a screen
- Verification
- Locator and net-pad positions checked on in-house CMM and probe metrology
How a quote starts
Send enough context to get a useful answer
-
01
Show the requirement
A drawing, model, marked-up photo, layout or statement of work is enough to begin.
-
02
Name the decision
Quantity, timing, critical features and acceptance requirements keep the quote focused.
-
03
Review together
We identify risk, missing data and the best process before committing your schedule.
Buyer questions
Straight answers before you send a print
How is an assembly fixture different from a weld fixture?
A weld fixture is designed around heat, distortion and gun access. An assembly fixture is designed around the operator: load sequence, reach, torque access, cycle time and preventing build errors. Dynamics Group builds both, and scopes them differently.
Can you design in error-proofing?
Yes. Poka-yoke features and part-present sensing are design inputs from the start — the cheapest place to prevent a wrong build is the fixture, not the end-of-line check.
Do you try the fixture out before it ships?
Yes. Real parts are loaded and the sequence run in our Madison Heights shop so issues surface here rather than on your line.
Can you support a fixture after launch?
Yes. Wear details, spares and design changes are handled by the same team that designed and built the tool.
Have a print, model or tooling problem?
Send what you have. We will tell you where we fit, what is missing and the fastest practical next step.
